Mechanical Keyboard Layouts Explained: 100%, TKL, 75%, 65%, 60%, and Beyond
A practical walkthrough of mechanical keyboard layouts — full-size, TKL, 75%, 65%, 60%, 40%, and split — covering what keys you lose at each step and who each layout actually suits.
The first decision you make when shopping for a mechanical keyboard isn’t switches or keycaps. It’s the layout. Get this wrong and every other choice you make is in service of a board you won’t actually enjoy using.
The good news is that the layout taxonomy is mostly settled. The names are consistent across brands, and once you understand what each one cuts, you can match a layout to how you actually use a keyboard day to day.
The full layouts: 100% and 1800-compact
A 100% board has everything: the alphas, modifiers, function row, navigation cluster (arrows, Home/End, Page Up/Down, Insert/Delete), and a full numpad on the right side. About 104 keys on a US ANSI layout, give or take.
The 1800-compact (sometimes called “96%”) keeps the numpad but smushes everything together, eliminating the dead space between clusters. You get nearly all the keys in a footprint closer to a TKL.
Who these are for: Anyone who actually uses the numpad — accountants, data-entry workers, anyone doing finance or 10-key work daily. Also gamers who genuinely want a full bottom row of macro keys.
The honest tradeoff: Most people don’t use their numpad enough to justify the desk space. The mouse pushed further right means more shoulder strain over a long workday. If you think you need the numpad but you only touch it occasionally, you don’t need it.
TKL (tenkeyless / 80%)
Drop the numpad. Keep everything else. About 87 keys.
TKL is the default recommendation for most desktop users in 2026 and has been for years. The numpad is the single biggest piece of real estate on a 100% board, and removing it gives you a much closer mouse position without giving up the function row or nav cluster.
Who this is for: Office workers, programmers, gamers, writers — basically anyone whose work doesn’t involve constant numeric entry. If you can’t decide between layouts, the answer is TKL.
The tradeoff: None worth mentioning, which is why this layout has been the default for so long.
75%
A TKL compressed sideways. The function row sits directly above the alphas with no gap, and the nav cluster collapses into a vertical column on the right (typically Delete, Page Up, Page Down, plus arrows wedged into the bottom-right corner).
You keep nearly every key from a TKL but in a footprint closer to a 65%.
Who this is for: People who want a compact board but aren’t ready to give up the function row, dedicated arrows, or Delete. Many of the best enthusiast boards in the past few years have been 75% — it’s the current “premium compact” sweet spot.
The tradeoff: Everything’s closer together, so misclicks on the nav column (hitting Delete instead of Home, for example) take some adjustment. Most people stop noticing within a week.
65%
Drop the function row from a 75%. Keep dedicated arrows and usually 3–4 keys above the arrows (Delete, Page Up, Page Down, Home, or some subset). Around 68 keys.
The function row keys (F1–F12) move to a Fn-layer — you hold a function key and tap a number row key to access them.
Who this is for: People who rarely use F-keys and want a much smaller desk footprint. Programmers who live in their text editor and don’t use F-keys for IDE shortcuts. Writers, students, anyone whose primary mouse-arm comfort matters more than F-key access.
The tradeoff: F-keys require a chord. If you use F2 to rename files all day, or F5 to refresh, or F12 to inspect, you’ll notice the friction. Test how often you actually hit F-keys before committing.

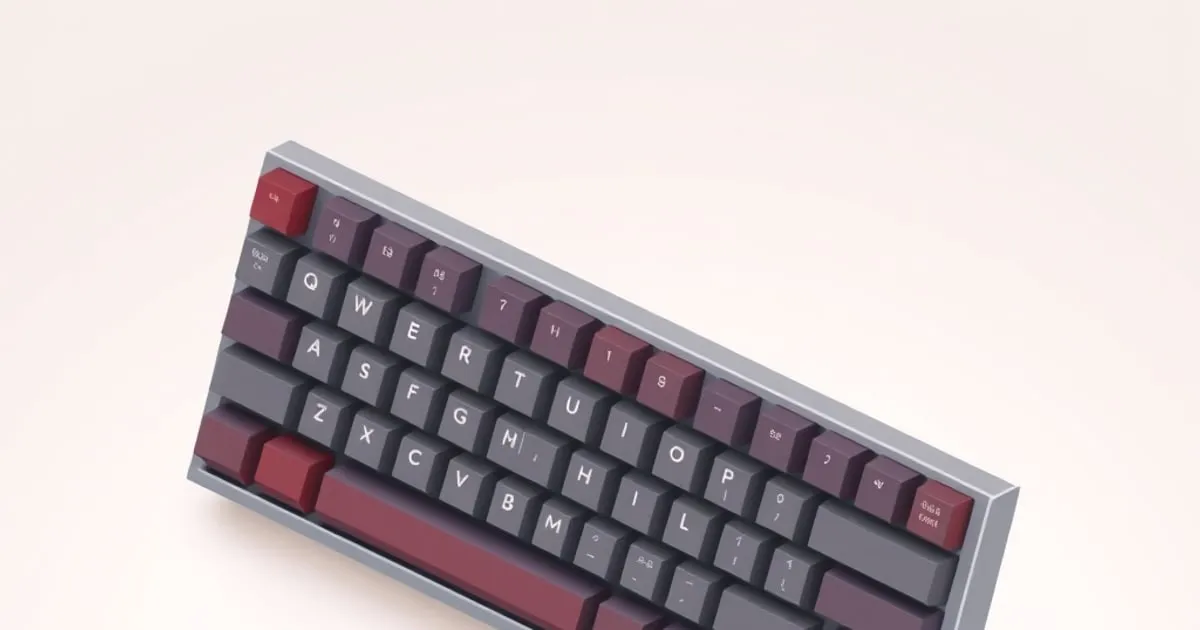

60%
Drop the arrow cluster too. The board ends at the right shift key. Around 61 keys.
Arrows and nav move entirely to a Fn-layer (typically Fn+I/J/K/L or Fn+arrows-on-WASD).
Who this is for: Touch typists who don’t want to move their hand off home row. People with very small desks. Travelers who want a board that fits in any bag. Vim and modal-editor users who already navigate without arrows.
The tradeoff: Arrow keys behind a Fn-chord is genuinely annoying for most people doing non-text-editor work. Don’t pick 60% as your first compact board unless you’ve already adjusted to layered arrows elsewhere.
40% and ortholinear / split
Below 60% you enter enthusiast territory. 40% boards drop the number row too, putting numbers on a layer. Ortholinear boards (Planck, Preonic) use a grid layout instead of staggered keys. Split keyboards (Kinesis, ZSA Moonlander, Glove80) separate the two halves for ergonomics.
These aren’t beginner boards. They demand custom muscle memory and usually QMK/ZMK firmware tinkering. If you’re reading a layouts guide, you’re almost certainly not ready for one — but they’re worth knowing about as the endgame for ergo and minimalist users.
Which layout for which job
| Use case | Recommended layout |
|---|---|
| Accounting / heavy numpad | 100% or 1800-compact |
| Office / programming / general desktop | TKL |
| Compact-but-complete | 75% |
| Small desk, occasional F-key use | 65% |
| Maximum minimalism, touch-typist | 60% |
| Ergonomics-first | Split (ZSA, Kinesis, Glove80) |
Pick the layout first. Everything else — switches, keycaps, case material — is a refinement. Layout is the decision you live with every keystroke.
Once you’ve settled on a size, the next call is feel: start with our guide to linear, tactile, and clicky switches, then browse the rest of our mechanical keyboard guides for keycaps and build advice.
